In the vast and increasingly complex food and beverage industry, every step from raw material reception to final product packaging demands high precision and consistency. Whether brewing a rich beer, mixing a refreshing juice, or producing a thick sauce, precise measurement and control of liquid flow are the cornerstones of ensuring product quality, production safety, and operational efficiency. Behind the scenes, the unsung heroes are food and beverage flow meters.

  • Beverage factory pictures 1

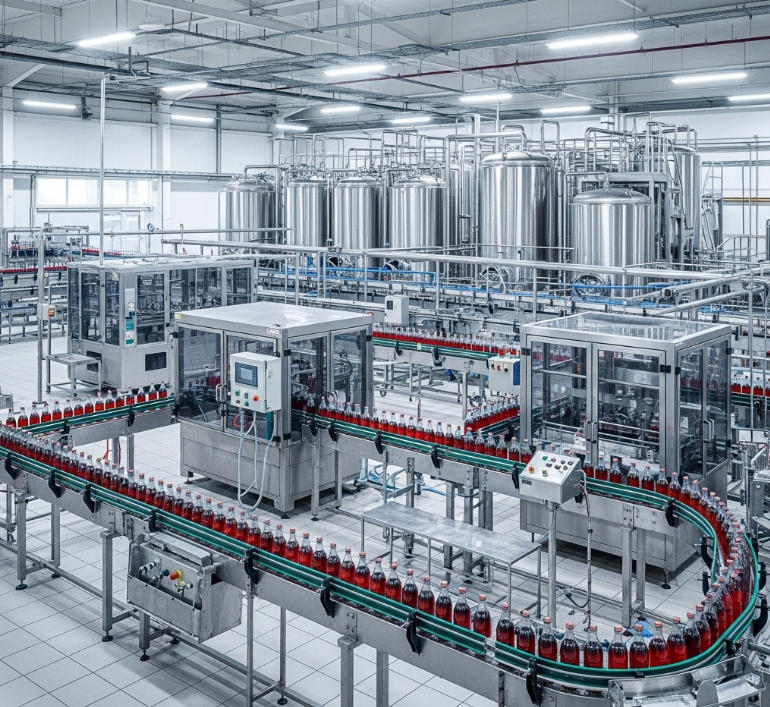

  • Beverage factory pictures 2

Why is flow measurement so important in the food and beverage industry?

  • Ensuring product quality and consistency: Precise ingredient measurement is essential for maintaining the stability of product flavor, texture, and nutritional content. Flow meters ensure that the volume of liquid added during each batching, mixing, or dilution process aligns with the predefined formula, minimizing batch-to-batch variations.
  • Maintaining food safety: Preventing cross-contamination, ensuring the accurate proportions of additives and ingredients, and meeting stringent regulatory requirements. Flow meters can also be used to monitor the flow of cleaning solutions and steam during CIP (Clean-in-Place) and SIP (Sterilization-in-Place) processes, ensuring thorough equipment cleaning.
  • Enhancing production efficiency: Optimizing production processes, reducing batch processing time, precisely controlling filling volumes, and minimizing raw material waste and product loss.
  • Control operational costs: Accurately measure the use of expensive raw materials, water, energy, and other resources to achieve precise cost accounting and inventory management.
  • Meet regulatory compliance: Many countries and regions (such as the FDA and EFSA) have strict hygiene and traceability requirements for food and beverage production processes. Flow meters that meet hygiene standards and the precise data they provide are key to meeting these requirements.

Unique challenges in the food and beverage industry

Unlike general industrial environments, the food and beverage industry imposes stricter requirements on flow meters:

  • Hygienic design: Must meet strict hygiene standards (e.g., 3-A, EHEDG certification), using dead-space-free, easy-to-clean, corrosion-resistant materials (typically 316L stainless steel), with high surface finish, capable of withstanding CIP and SIP processes.
  • Medium Diversity: A wide variety of liquids must be measured, ranging from low-viscosity water, juice, and milk to high-viscosity syrups, chocolate sauce, and tomato sauce, which may also contain solid particles or bubbles.
  • Process Compatibility: Must be capable of integration into existing piping systems and automated control systems.
  • Reliability and Durability: Must maintain long-term stable operation under frequent cleaning, temperature fluctuations, and potential chemical corrosion environments.

Common Flow Meter Types in the Food and Beverage Industry

To address these challenges, several specific types of flow meters have been widely adopted in the F&B industry:

Magnetic Flow Meters

  • Principle: Based on Faraday’s law of electromagnetic induction, suitable for measuring conductive liquids (such as water, juice, milk, beer, CIP solutions, etc.).
  • Advantages: No moving parts, no obstructions to fluid flow, low pressure loss, smooth inner walls of the measuring tube, easy to clean, meets hygiene requirements, and high accuracy.
  • Limitations: Cannot measure non-conductive liquids (such as oil, syrup, or pure liquids) or gases.

Coriolis Mass Flow Meters:

  • Principle: Directly measures mass flow by utilizing the Coriolis force generated when fluid flows through a vibrating tube.
  • Advantages: Extremely high accuracy, can directly measure mass flow (critical for blending), density, and temperature; unaffected by changes in fluid conductivity, viscosity, or pressure; wide application range; mature hygienic design.
  • Limitations: Relatively high initial cost; may have higher installation requirements (e.g., vibration isolation).

Ultrasonic Flow Meters

  • Principle: Calculates flow velocity by measuring the time difference between ultrasonic pulses traveling in the same direction and opposite directions through the fluid.
  • Advantages: Non-contact measurement (clamp-on), completely non-contact with the fluid, easily meets hygiene requirements; also available in hygienic pipe-mounted designs. Suitable for various liquids, including non-conductive liquids. No pressure loss.
  • Limitations: Sensitive to pipeline conditions, bubbles, and solid particles in the fluid, which may affect accuracy.

Vortex Flow Meters / Turbine Flow Meters:

  • Vortex: Measures flow velocity by detecting the frequency of vortices generated when fluid flows over an obstruction. Sanitary designs require special attention to cleanliness.
  • Turbine: Measures flow velocity by detecting the rotation of turbine blades driven by the fluid. Contains moving parts, which may pose hygiene dead zones and wear issues unless specifically designed for F&B applications.
  • Applications: Relatively uncommon in core F&B industry applications, may be used in some auxiliary processes (e.g., water treatment, steam measurement).

How to select the appropriate food and beverage flow meter?

Selecting the optimal flow meter requires comprehensive consideration of the following factors:

  • Fluid characteristics: Conductivity, viscosity, density, presence of particles or bubbles, temperature, pressure.
  • Sanitary requirements: Are 3-A, EHEDG, or similar certifications required? CIP/SIP compatibility? Material and surface finish requirements?
  • Accuracy requirements: The accuracy grade required for the application scenario (critical ingredients, process monitoring, filling, trade settlement).
  • Flow range: Minimum and maximum expected flow rates.
