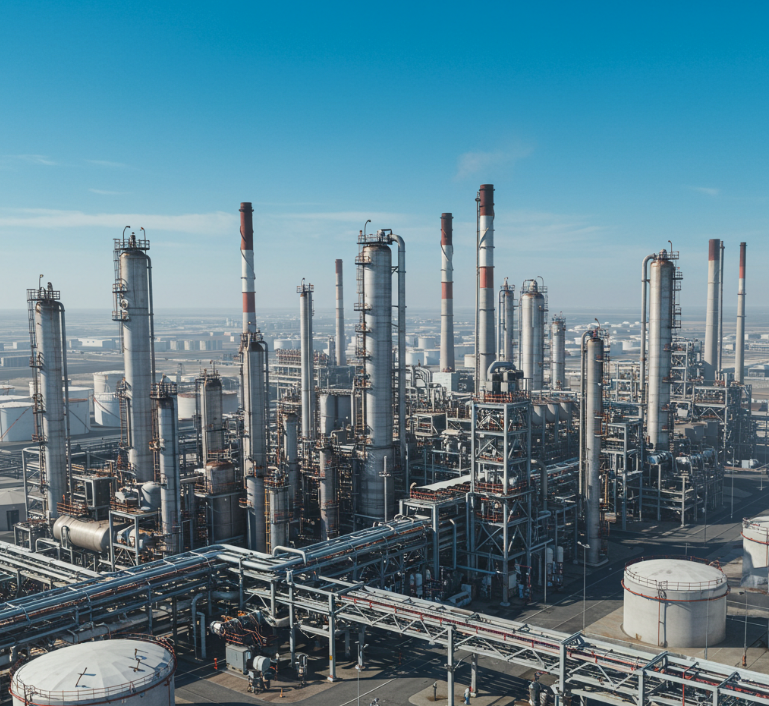

The chemical industry is a critical component of the modern industrial system, and the precise measurement of various chemical substances is essential for ensuring the safety, stability, and efficiency of production processes. Among the numerous measurement instruments available, chemical flow meters play a pivotal role. They serve as the “eyes” of chemical production lines, continuously monitoring the flow of various chemicals and providing reliable data support for process control, quality management, and cost accounting.
The Importance of Chemical Flow Meters
In the chemical industry, precise flow measurement is not only about cost but also about safety and product quality:
- Process Control: Many chemical reactions require strict ratios of raw materials, and precise flow control is essential to ensure reactions proceed as intended.
- Quality Control: The quality of the final product directly depends on the accurate measurement of various chemicals during production.
- Safety: Certain chemicals are corrosive, flammable, or explosive, and precise flow measurement helps prevent accidents such as leaks or spills.
- Cost Accounting: Accurate flow data is the foundation for material balance, cost analysis, and optimizing production processes.
- Environmental Protection: Monitoring the flow of wastewater, exhaust gases, and other emissions helps companies comply with environmental regulations and reduce pollution.
Challenges Faced by Chemical Flow Meters
Compared to common fluids like water and oil, the chemical industry requires measurement of a wide variety of media with distinct properties, presenting unique challenges for flow measurement:
- Corrosiveness: Many chemicals are highly corrosive, imposing stringent requirements on the material of flow meters.
- Significant Viscosity Changes: The viscosity of certain chemicals can change significantly due to factors such as temperature and concentration, affecting the accuracy of flow meters.
- Crystallization or Precipitation: Some chemicals may crystallize or precipitate under specific conditions, potentially blocking or damaging flow meters.
- High or Low Temperatures: Chemical production processes often involve high or low-temperature environments, requiring flow meters to operate stably under extreme temperatures.
- Hazardous properties: Some chemicals are toxic, flammable, or explosive, necessitating stringent safety requirements for flow meters, which must comply with relevant explosion-proof standards.
Types of chemical flow meters
To address the diverse challenges posed by complex chemical media, various types of chemical flow meters are available on the market. These meters operate based on different measurement principles and are suited for different application scenarios:
- Positive Displacement Flow Meters: Suitable for measuring high-viscosity, low-flow liquids such as resins and adhesives. They offer high accuracy but have certain requirements for the cleanliness of the medium.
- Coriolis Mass Flow Meters: Can directly measure the mass flow rate of fluids, unaffected by medium density, temperature, or pressure. They are suitable for various liquids and gases, including corrosive media and slurries. However, they are relatively expensive.
- Electromagnetic Flow Meters: Suitable for measuring conductive liquids, such as acids, alkalis, and salt solutions. Their advantages include no moving parts, low pressure loss, and high accuracy, but they cannot measure non-conductive liquids.
- Ultrasonic Flow Meters: Can measure various liquids and gases, including corrosive and abrasive media. They offer non-contact measurement and easy installation. However, accuracy may be affected by impurities or bubbles in the medium.
- Vortex Flow Meters: Suitable for measuring clean liquids and gases, with a simple structure, wide measurement range, and low pressure loss.
- Variable Area Flow Meters/Rotameters: Feature a simple structure, low cost, and can directly display instantaneous flow rate, commonly used in applications with low accuracy requirements or for on-site indication.
- Differential Pressure Flow Meters: Such as orifice plate flow meters and Venturi flow meters, they have a simple structure and low cost, but accuracy may be affected by the state of the medium, and pressure loss is relatively high.
How to select the appropriate chemical flow meter?
Selecting the appropriate chemical flow meter is critical and requires comprehensive consideration of the following key factors:
- Medium Characteristics: This is the primary consideration, including the chemical properties (corrosivity, toxicity, flammability, etc.), physical properties (viscosity, density, conductivity, presence of solid particles or bubbles, etc.), and operating temperature and pressure of the medium.
- Flow Range: Determine the minimum and maximum flow rates to be measured and select an appropriate measurement range.
- Accuracy Requirements: Determine the required measurement accuracy grade based on process control, quality management, or trade settlement needs.
- Pipeline Conditions: This includes pipeline dimensions, material, installation space, and whether vibration is present.
- Safety Requirements: For flammable, explosive, or toxic media, flow meters compliant with relevant explosion-proof standards must be selected.
- Cost Budget: Consider the purchase cost, installation cost, maintenance cost, and service life of the flow meter comprehensively.
- Maintenance and Calibration: Different types of flow meters have varying maintenance and calibration requirements, so consider the long-term maintenance costs and convenience.
- Signal Output and Communication: Whether analog or digital signal output is required, and whether communication with other control systems is needed.
In the actual selection process, it is typically necessary to consult professional instrumentation engineers and refer to relevant industry standards and specifications to conduct a comprehensive technical and economic assessment.
